סוללות ליתיום למחזור עמוק - SLA Replace
סוללת LiFePO4 מקבוצה 27 לשימוש ברכבי נופש וסירות
Certifications
- UL1642
- IEC62619
- IEC62133
- UN38.3
- CE
- Ce
- ROHS
- Electrical Specifications
- Nominal Voltage | 12.8V | 12.8V | 12.8V | 24V | 48V
- Nominal Capacity
- 120Ah | 138Ah | 150Ah | 75Ah | 35Ah
- Parallel Connection
- Max. 6units | Max. 6units | Max. 6units | Max. 6units | Max. 6units
- Series Connection
- Max. 4units | Max. 4units | Max. 4units | Max. 2units | No
- BMS
- 4S150A | 4S150A | 4S150A | 8S80A | 16S50A
- Circuit Protection
- Over charge, Over discharge, Over current, Over temp, Short, Balance
- Cycle Life
- 3000times Cycles @100%DOD and 6000times @80% DOD
- Self Discharge
- Less than 3% per month
- Charge Efficiency
- 100%@0.2C
- Discharge Efficiency
- 98-100%@1C
- Charge Specifications
- Charge Voltage | 14.4±0.2V | 14.4±0.2V | 14.4±0.2V | 28.8±0.4V | 57.6±0.8V
- Standard Current
- 20A | 27A | 30A | 15A | 7A
- Fast Charge Current
- 60A | 69A | 75A | 37A | 17A
- Discharge Specifications
- Standard Current | 20A | 27A | 30A | 15A | 7A
- Max. Continuous Current
- 120A | 138A | 150A | 75A | 35A
- Peak Current
- 600A(300ms) | 600A(300ms) | 600A(300ms) | 400A(300ms) | 200A(300ms)
- Cut-off Voltage
- 10V | 10V | 10V | 20V | 40V
- Mechanical Specifications

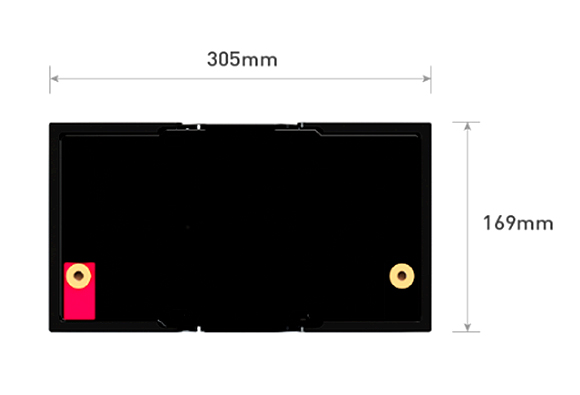

- Dimensions (mm) | 305x169x210mm(Group 27)
- Approx. Weight
- 13.5 | 14 | 14 | 14 | 13.5
- Terminal Type
- M8
- Case Color / Material
- Black Plastic case(ABS)
- IP Rating
- IP65
- Cell Type
- Cylinder LiFePO4 cell
- Cell Holder
- Yes
- Temperature Specifications
- Charge Temp | 0°C to 55°C
- Discharge Temperature
- -20°C to 60°C
- Storage Temperature
- -5°C to 45°C
Dimensions and weight shown in imperial units (in / lb).
