Akumulatory litowe deep cycle

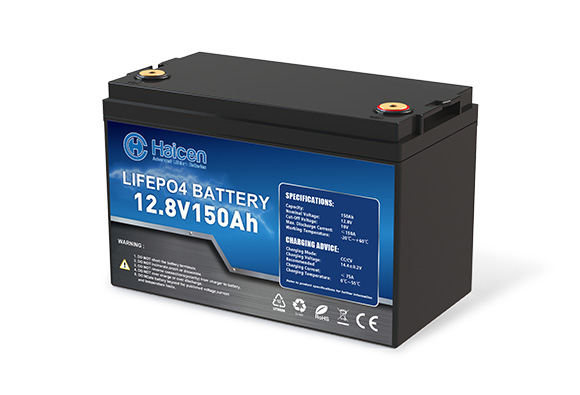

HCG31(BCI Group 31) Seria-12V132/150/165Ah, 24V80Ah, 48V40Ah Akumulator litowy LiFePO4
Certyfikaty
- UL1642
- IEC62619
- IEC62133
- UN38.3
- RoHS
- CE
- Ce
- ROHS
- CE(Pack)
- Parametry elektryczne
- Nominal Voltage | 12.8V | 12.8V | 12.8V | 24V | 48V
- Pojemność nominalna
- 132Ah | 150Ah | 165Ah | 80Ah | 40Ah
- Parallel Connection
- Max. 6units | Max. 6units | Max. 6units | Max. 6units | Max. 6units
- Series Connection
- Max. 4units | Max. 4units | Max. 4units | Max. 2units | No
- BMS
- 4S150A | 4S150A | 4S150A | 8S80A | 16S50A
- Circuit Protection
- Over charge, Over discharge, Over current, Over temp, Short, Balance
- Cycle Life
- 3000times Cycles @100%DOD and 6000times @80% DOD
- Self Discharge
- Less than 3% per month
- Charge Efficiency
- 100%@0.2C
- Discharge Efficiency
- 98-100%@1C
- Charge Specifications
- Charge Voltage | 14.4±0.2V | 14.4±0.2V | 14.4±0.2V | 28.8±0.4V | 57.6±0.8V
- Standard Current
- 26A | 30A | 33A | 16A | 8A
- Fast Charge Current
- 66A | 75A | 82A | 40A | 20A
- Discharge Specifications
- Standard Current | 26A | 30A | 33A | 16A | 8A
- Max. Continuous Current
- 132A | 150A | 150A | 80A | 40A
- Peak Current
- 600A(300ms) | 600A(300ms) | 600A(300ms) | 400A(300ms) | 200A(300ms)
- Cut-off Voltage
- 10V | 10V | 10V | 20V | 40V
- Parametry mechaniczne

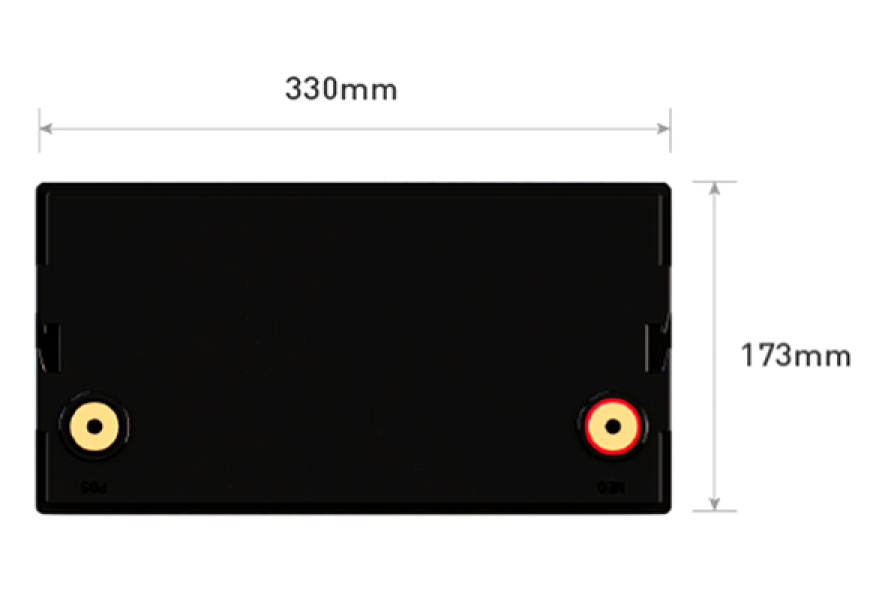

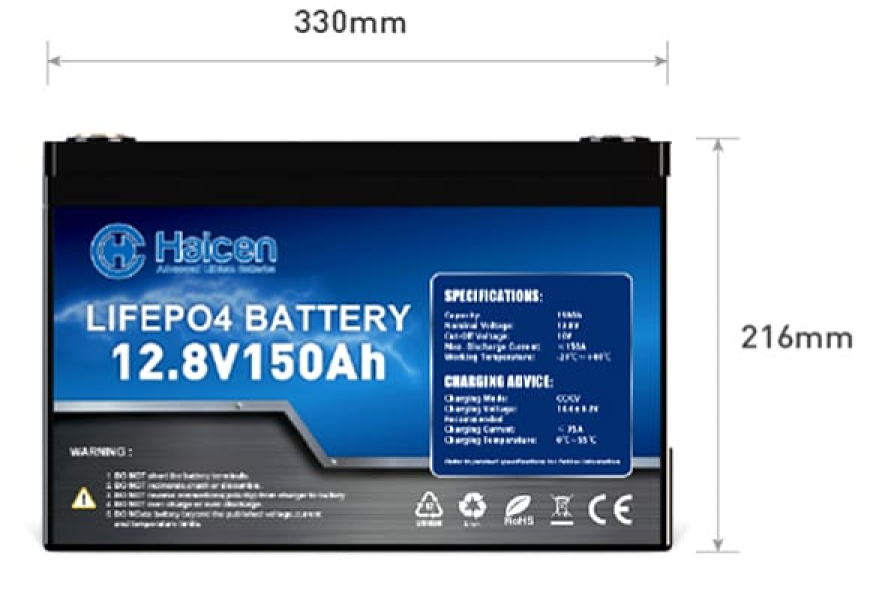

- Dimensions (mm) | 330x173x216mm(Group 31)
- Waga ok.
- 15 | 15.5 | 15.5 | 15 | 15
- Terminal Type
- M8
- Case Color / Material
- Black Plastic case(ABS)
- IP Rating
- IP65
- Cell Type
- Cylinder LiFePO4 cell
- Cell Holder
- Yes
- Parametry temperaturowe
- Charge Temp | 0°C to 55°C
- Temperatura rozładowania
- -20°C to 60°C
- Temperatura przechowywania
- -5°C to 45°C
Wymiary i masa w jednostkach metrycznych (mm / kg).
