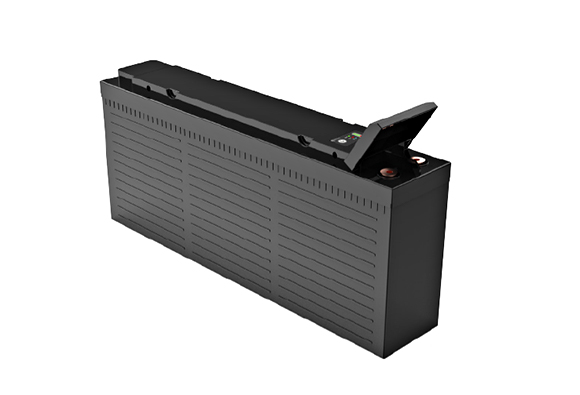

Płaskie akumulatory do urządzeń IoT i inteligentnego domu

Certyfikaty

HC552S-12175BT: HC552S-12200BT
Electrical Specifications: Nominal Voltage | 12.8V | 12.8V
Pojemność nominalna: 175Ah | 200Ah
Parallel Connection: Max. 6units | Max. 6units
Series Connection: Max. 4units | Max. 4units
BMS: 4S150A | 4S150A
Bluetooth: Android/IOS | Android/IOS
Heating: No | Yes
Circuit Protection: Over charge, Over discharge, Over current, Over temp, Short, Balance, Low temp
Cycle Life: 3000times Cycles @100%DOD and 6000times @80% DOD
Self Discharge: Less than 3% per month
Charge Efficiency: 100%@0.2C
Discharge Efficiency: 98-100%@1C
Charge Specifications: Charge Voltage | 14.4±0.2V | 14.4±0.2V
Standard Current: 35A | 40A
Fast Charge Current: 87A | 100A
Discharge Specifications: Standard Current | 35A | 40A
Max. Continuous Current: 150A | 150A
Peak Current: 800A(300ms) | 800A(300ms)
Cut-off Voltage: 10V | 10V
Mechanical Specifications: Dimensions (mm) | 552x110x289mm
Waga ok.: 18.5 | 20.5
Terminal Type: M8
Case Color / Material: Black Plastic case(ABS)
IP Rating: IP65
Cell Type: Cylinder LiFePO4 cell
Cell Holder: Yes
Temperature Specifications: Charge Temp | 0°C to 55°C
Temperatura rozładowania: -20°C to 60°C
Temperatura przechowywania: -5°C to 45°C

Wymiary i masa w jednostkach metrycznych (mm / kg).
