Akumulatory litowe do wózków golfowych

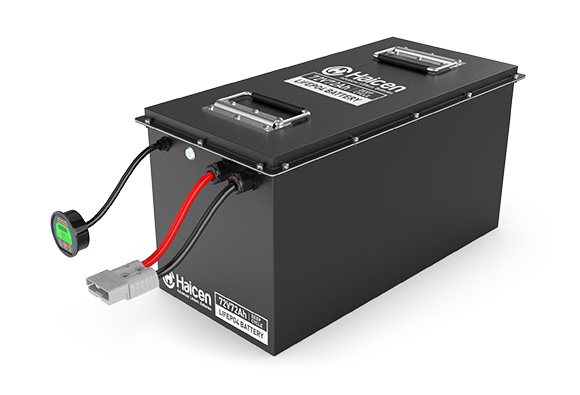

HC7272 Seria-72V72Ah Akumulator litowy LiFePO4

Certyfikaty

Parametry elektryczne: Nominal Voltage | 76.8V
Pojemność nominalna: 72Ah
Parallel Connection: Max. 4units
Series Connection: No
BMS: 24S150A
Circuit Protection: Over charge, Over discharge, Over current, Over temp, Short, Balance
Optional Function: Rs485 ,CAN; LCD; Active balancing module
Cycle Life: 3000times Cycles@100%DODand 6000times @80%DOD
Self Discharge: Less than 3% per month
Charge Efficiency: 100%@0.2C
Discharge Efficiency: 98-100%@1C
Charge Specifications: Charge Voltage | 86.4V
Standard Current: 14.4A
Fast Charge Current: 36A
Discharge Specifications: Standard Current | 14.4A
Max. Continuous Current: 150A
Peak Current: 300A(200ms)
Cut-off Voltage: 60V

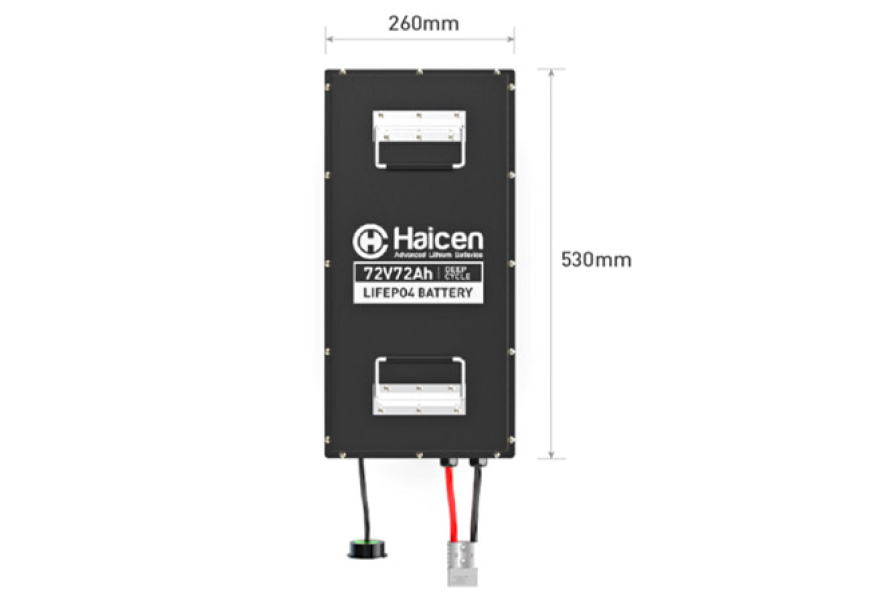

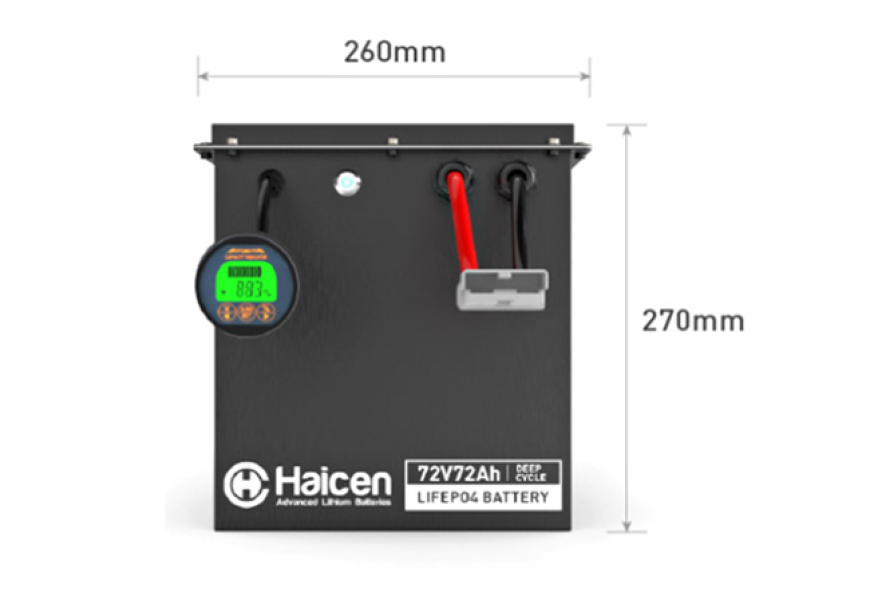

Parametry mechaniczne: Dimensions (mm) | 530x260x270mm
Waga ok.: 50
Terminal Type: M8
Case Color / Material: Black Metal case
IP Rating: IP65
Cell Type: Cylinder LiFePO4 cell
Cell Holder: Yes
Parametry temperaturowe: Charge Temp | 0°C to 55°C
Temperatura rozładowania: -20°C to 60°C
Temperatura przechowywania: -20°C to 45°C

Wymiary i masa w jednostkach metrycznych (mm / kg).
