Deep Cycle Lithium Batteries-SLA Replace

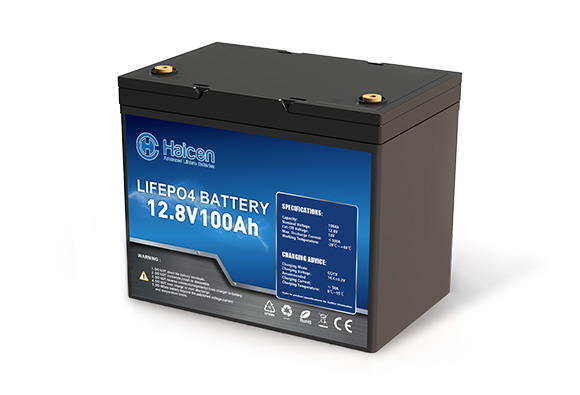

HCG24(BCI Group 24) Series-12V100/120/135Ah,24V50/65Ah, 48V30Ah LiFePO4 Lithium Batteries
Certifications
- UL1642
- IEC62619
- IEC62133
- UN38.3
- RoHS
- CE
- Ce
- ROHS
- CE(Pack)
- ElectricalSpecifications
- Nominal Voltage | 12.8V | 12.8V | 12.8V | 24V | 24V | 48V
- Nominal Capacity
- 100Ah | 120Ah | 135Ah | 50Ah | 65Ah | 30Ah
- Parallel Connection
- Max. 6units | Max. 6units | Max. 6units | Max. 6units | Max. 6units | Max. 6units
- Serial Connection
- Max. 4units | Max. 4units | Max. 4units | Max. 2units | Max. 2units | No
- BMS
- 4S100A | 4S150A | 4S150A | 8S50A | 8S60A | 16S50A
- Circuit Protection
- Over charge, Over discharge, Over current, Over temp, Short, Balance
- Cycle Life
- 3000times Cycles @100%DOD and 6000times @80% DOD
- Self Discharge
- Less than 3% per month
- Charge Efficiency
- 100%@0.2C
- Discharge Efficiency
- 98-100%@1C
- ChargeSpecifications
- Charge Voltage | 14.4±0.2V | 14.4±0.2V | 14.4±0.2V | 28.8±0.4V | 28.8±0.4V | 57.6±0.8V
- Standard Current
- 20A | 24A | 27A | 10A | 13A | 6A
- Fast Current
- 50A | 60A | 67A | 25A | 32A | 15A
- DischargeSpecifications
- Standard Current | 20A | 24A | 27A | 10A | 13A | 6A
- Max. Con. Current
- 100A | 120A | 135A | 50A | 60A | 30A
- Peak Current
- 500A(300ms) | 600A(300ms) | 600A(300ms) | 200A(300ms) | 200A(300ms) | 200A(300ms)
- Cut-off Voltage
- 10V | 10V | 10V | 20V | 30V | 40V
- MechanicalSpecifications

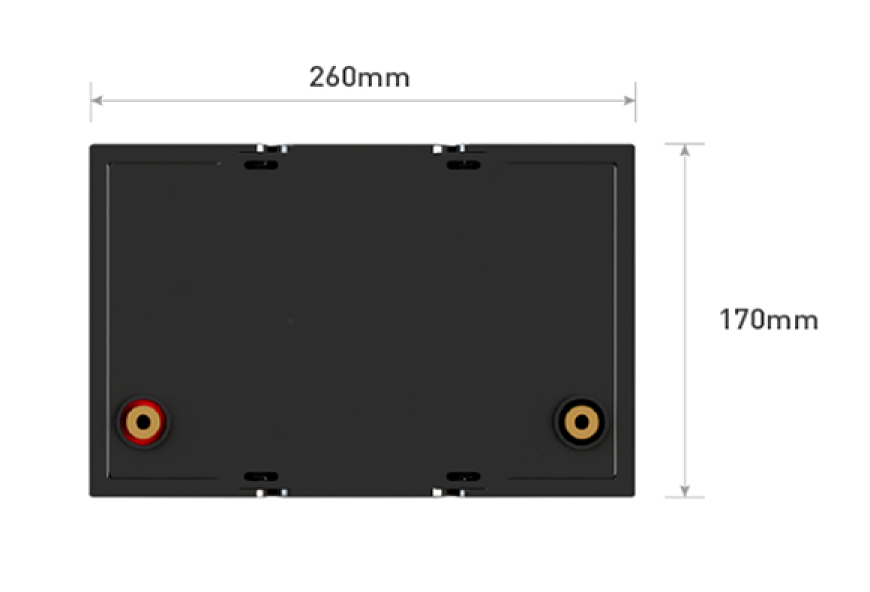

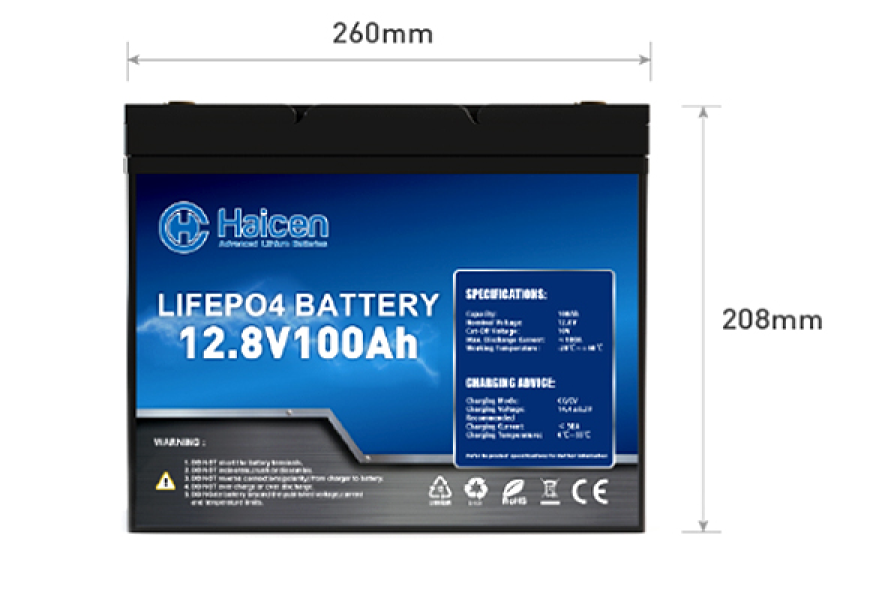

- Dimensions (mm) | 260x170x208mm(Group 24)
- Approx Weight(KG]
- 11.5 | 13 | 13 | 12 | 12 | 11.5
- Terminal Type
- M8
- Case Color/material
- Black Plastic case(ABS)
- IP Rating
- IP65
- Cell Type
- Cylinder LiFePO4 cell
- Cell holder
- Yes
- TemperatureSpecifications
- Charge Temp | 0℃ to 55℃ (32℉to131℉)
- Discharge Temp
- -20℃ to 60℃ (-4℉ to 140℉)
- Storage Temp
- -5℃ to 45℃ (23℉ to 113℉)
