Baterias de lítio para carrinhos de golfe

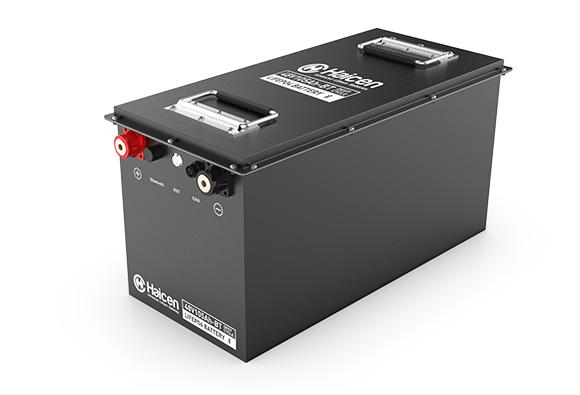

HC48105-B Série-48V105Ah Bateria inteligente LiFePO4 de lítio
Certificações
- UL1642
- UL2580
- IEC62619
- UN38.3
- CE
- Ce
- Especificações elétricas
- Nominal Voltage | 51.2V
- Capacidade nominal
- 105Ah
- Parallel Connection
- Max. 4units
- Series Connection
- No
- BMS
- 16S200A
- Bluetooth
- Android/IOS
- Circuit Protection
- Over charge, Over discharge, Over current, Over temp, Short, Balance
- Optional Function
- Rs485 ,CAN; LCD; Active balancing module
- Cycle Life
- 3000times Cycles@100%DODand 6000times @80%DOD
- Self Discharge
- Less than 3% per month
- Charge Efficiency
- 100%@0.2C
- Discharge Efficiency
- 98-100%@1C
- Charge Specifications
- Charge Voltage | 57.6±0.8V
- Standard Current
- 21A
- Fast Charge Current
- 52A
- Discharge Specifications
- Standard Current | 21A
- Max. Continuous Current
- 200A
- Peak Current
- 900A(100ms)
- Cut-off Voltage
- 40V
- Especificações mecânicas

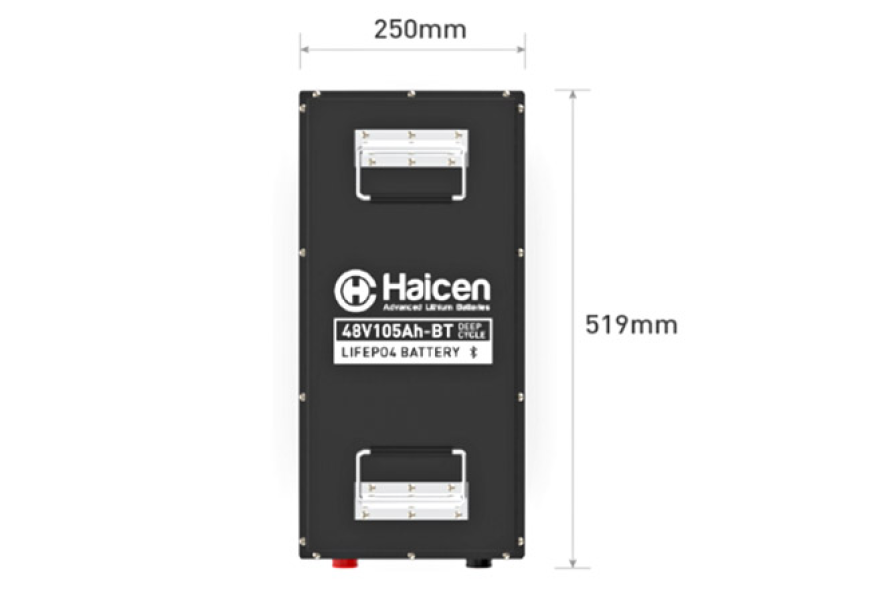

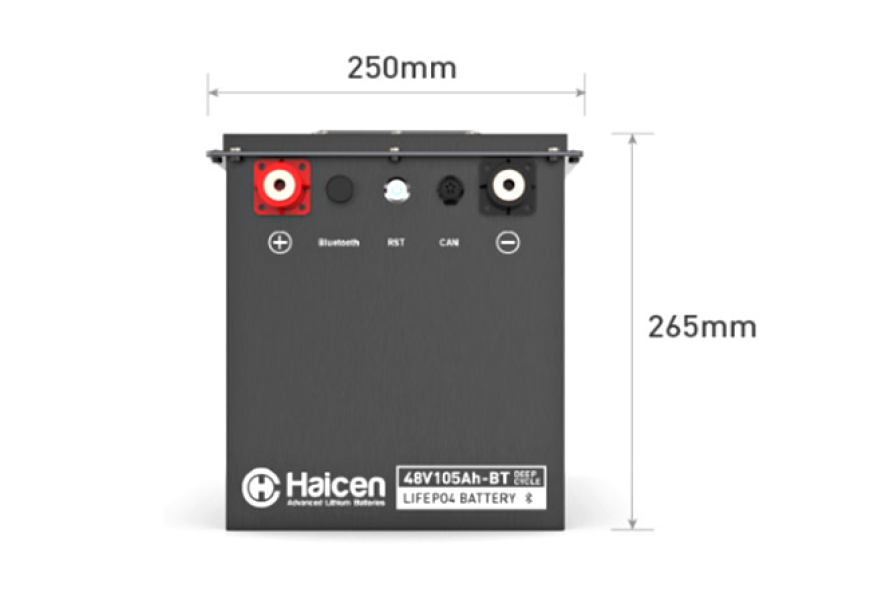

- Dimensions (mm) | 519x250x265mm
- Peso aprox.
- 45
- Terminal Type
- M8
- Case Color / Material
- Black Metal case
- IP Rating
- IP65
- Cell Type
- Prismatic cell
- Cell Holder
- Yes
- Especificações de temperatura
- Charge Temp | 0°C to 55°C
- Temperatura de descarga
- -20°C to 60°C
- Temperatura de armazenamento
- -20°C to 45°C
Dimensões e peso em unidades métricas (mm / kg).
Solicitar orçamento
